In industrial production, even slight fluctuations in flow can lead to serious issues. Whether caused by manufacturing defects or instrument reading errors, such fluctuations can potentially result in flow anomalies. When standard valves (such as ball, gate, or check valves) fall short of requirements, needle valves offer a solution specifically designed for precise flow control.
Working Principle

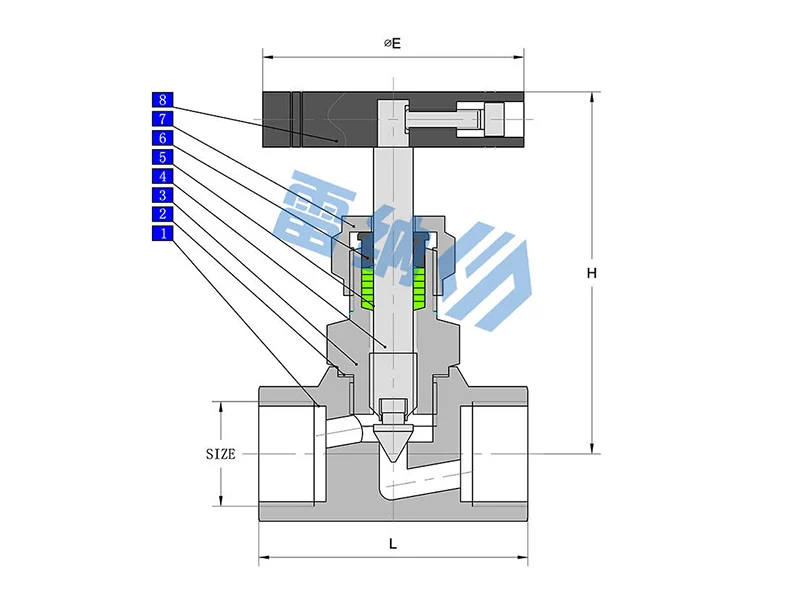

A needle valve regulates flow precisely by using a stem with fine threads and a needle-shaped plug (or plunger) to gradually open or close the fluid passage.
To operate the valve, the handwheel is turned counter-clockwise; this moves the plug away from the seat, gradually increasing the flow gap. By controlling the displacement of the plug, the fluid throughput is precisely regulated. Conversely, turning the handwheel clockwise closes the valve, bringing the tapered surface of the plug into full contact with the seat to ensure a zero-leakage seal.
Needle valves are commonly used in instrumentation systems, sampling lines, and high-pressure, low-flow applications that demand exceptional precision and sealing integrity.
Why They Offer Precise Flow Control
The primary function of a needle valve is to regulate, throttle, or shut off fluid flow in systems requiring fine control. Several design features ensure this precision:
Gradual throttling via a tapered plug: The valve features a slender, sharply tapered plug that enables micro-flow regulation—down to the level of 0.01 mL/min—and ensures an extremely smooth transition from fully closed to fully open.
High-gain mechanical transmission via fine threads: The stem utilizes fine-pitch threads to provide a high mechanical reduction ratio, meaning even a tiny rotation results in only a minute movement of the plug.
Precision design of flow paths and mating tolerances: Needle valves typically feature small bore sizes and slender flow paths, resulting in stable flow resistance characteristics. The handwheel includes a graduated scale, allowing for a direct correlation between the number of turns and the flow rate, thereby enabling repeatable, precise adjustments.
Linear flow characteristics: There is a stable, linear relationship between the plug opening and the flow rate.
Needle Valves vs. Globe Valves
| Comparison Dimension | Needle Valve | Standard Globe Valve |
| Core Application | Precision flow fine-tuning; control of small, high-pressure pipelines | Main pipeline shut-off/flow; high-volume fluid transport |
| Typical Sizes | Primarily DN6–DN15; rarely exceeds DN20 | Covers DN15–DN300+; primarily medium-to-large sizes |
| Regulation Precision | Up to ±1%; supports micron-level fine control | Low precision; supports only coarse adjustment; unsuitable for long-term throttling |
| Standard Pressure Rating | 3,000–10,000 PSI; up to 20,000 PSI (ultra-high pressure) | Primarily low-to-medium pressure; high-pressure versions are bulky |
| Operational Characteristics | Requires multiple turns (>10) to fully open; allows controlled fine-tuning | Fully opens in 2–3 turns; rapid opening/closing |
| Sealing Method | Mostly metal-to-metal (hard) seals; suitable for high-pressure/high-temperature environments | Both soft and metal seals available; superior sealing performance at low-to-medium pressures |
| Common Connections | Primarily compression fittings and NPT threads; suitable for small instrumentation lines | Primarily flanges and butt-welds; suitable for main process pipelines |
| Susceptibility to Wear | Conical valve tip prone to fluid erosion during prolonged partial-open operation | Prone to vibration and valve core erosion/wear at small opening angles |
As shown in the table above, needle valves deliver precise control and reliable shut-off capabilities, even in high-pressure environments.
Conclusion
Needle valves play a vital role in ensuring flow precision, system safety, and process efficiency across various industries. Leina’s valves are designed and manufactured in strict accordance with advanced domestic and international standards—such as GB, ANSI, API, DIN, BS, and JIS—reflecting our commitment to providing high-quality products.
